Electrical Engineering Design in Kenya
Why electrical engineering must lead coordinated MEP design
Electrical engineering is the backbone of modern buildings in Kenya — not an add-on after architecture and structure are frozen. Every lift motor, fire pump, HVAC plant item, kitchen exhaust fan, and ICT rack depends on a defensible load analysis, a maintainable distribution hierarchy, and earthing that survives Kenya Power inspection and EPRA licensing scrutiny. When electrical design lags behind layout decisions, developers discover too late that the main switchboard room is undersized, generator exhaust routes conflict with fresh-air intakes, or the standby capacity cannot start a fire pump and a passenger lift simultaneously.
Cadreatech delivers electrical engineering as part of an integrated MEP programme tied to architectural coordination, structural penetrations, and fire strategy. That integration is what separates a set of generic single-line diagrams from a buildable, testable installation that county electrical inspectors and Kenya Power engineers can approve without forcing late redesign on site.
Kenyan commercial towers, hospitals, hotels, schools, and industrial facilities face rising expectations on power quality, backup resilience, and energy efficiency. Grid outages remain a planning reality; solar photovoltaic (PV) and battery systems are increasingly specified alongside diesel standby. Extra-low voltage (ELV) systems — structured cabling, CCTV, access control, public address, and building management interfaces — share risers and plant rooms with power distribution. Electrical engineering must orchestrate all of these from feasibility, not from shop-drawing stage.
Regulatory and standards landscape
Electrical installations in Kenya are governed by a layered framework. The Energy Act establishes the Energy and Petroleum Regulatory Authority (EPRA) as the sector regulator. EPRA licenses electrical contractors and workers, oversees embedded generation and net metering arrangements, and sets expectations for safe design and operation of supply systems. Kenya Bureau of Standards (KEBS) adopts and publishes Kenyan standards that reference international norms — including IEC publications for equipment and installation practice.
BS 7671 — the IET Wiring Regulations — is widely used as the design and inspection benchmark for low-voltage installations in Kenyan buildings. It covers selection and erection of equipment, protection against electric shock, overcurrent protection, earthing and bonding, and special locations such as bathrooms, swimming pools, and outdoor installations. Designers who mix outdated rule-of-thumb practices with partial BS 7671 compliance create installations that fail test certificates or require expensive remedial work at handover.
IEC 60364 provides the international foundation for low-voltage electrical installations: protection, isolation, and coordination principles that align with equipment rated to IEC product standards. For switchboards and assemblies, IEC 61439 series defines type-tested assembly requirements that responsible manufacturers follow. Cadreatech specifications cite these frameworks explicitly in design reports so contractors, inspectors, and maintenance teams share one technical language.
- EPRA — contractor licensing, embedded generation, operational safety oversight
- Kenya Power — supply application, metering, connection agreement, inspection
- BS 7671 — wiring design, verification, and periodic inspection benchmarks
- IEC 60364 / IEC 61439 — installation and switchboard assembly principles
- County building control — electrical plan approval alongside architectural submission
Main switchboard and generator plant rooms need clear access, ventilation, and fire-compartment boundaries. Confirm room sizes at sketch design — resizing after structural drawings are issued is costly.
Kenya Power supply and connection strategy
Grid supply is the starting point for every building electrical design. Kenya Power connection processes require load schedules, site plans, and single-line diagrams that match the as-designed installation — not aspirational loads that the transformer cannot support. Voltage drop, fault level, and metering arrangements must be agreed before cable sizing and protective device selection are finalised.
For multi-tenant commercial buildings, landlord and tenant metering boundaries affect MDB busbar arrangements, CT metering chambers, and riser sizing. Mixed-use developments with retail, office, and residential floors need tariff and supply segregation thought through early so that Kenya Power applications do not stall mid-construction.
Cadreatech prepares load summaries and single-line diagrams formatted for Kenya Power submission, coordinated with architectural meter room layouts and structural cable trench routes. Where medium-voltage supply is involved, interface studies with Kenya Power substation standards and protection settings are scoped as a dedicated work package.
Designing to an assumed transformer capacity without written Kenya Power confirmation is a leading cause of redesign. Obtain supply offer letters or formal capacity opinions before locking cable and switchboard ratings.
Load analysis, diversity, and demand profiles
Connected load is not demand. A thorough load analysis lists every significant circuit — lighting, small power, HVAC motors, lifts, pumps, kitchen equipment, process loads, and ELV power supplies — then applies diversity factors justified by occupancy and operating schedule. BS 7671 and engineering practice require that conductors and protective devices are sized for calculated demand while remaining adequate for fault conditions.
Motor starting currents dominate standby generator and voltage-drop studies. Fire pumps, lift drives, and large chiller compressors can impose six to eight times full-load current during acceleration. A load schedule that lists nameplate kW without starting behaviour will undersize automatic transfer switches and generator sets.
Cadreatech produces structured load schedules with stage-by-stage construction and operational phasing. For hospitals and data-sensitive facilities, essential and life-safety load categories are mapped to statutory requirements and client continuity plans so that standby generator sizing and solar PV integration studies use the same authoritative numbers.
| Load category | Typical considerations | Design output |
|---|---|---|
| Normal lighting & small power | Lux targets, socket density, diversity by floor | Circuit schedules, cable sizes |
| HVAC & mechanical plant | Starter type, power factor, BMS interfaces | MCC feeds, isolator locations |
| Lifts & vertical transport | Regenerative drives, peak demand, fire recall | Dedicated feeders, generator priority |
| Fire & life safety | Pumps, alarms, smoke control, emergency lighting | Essential supply segregation |
| ICT & ELV | PoE budgets, rack UPS, redundant paths | Dedicated circuits, panel boards |

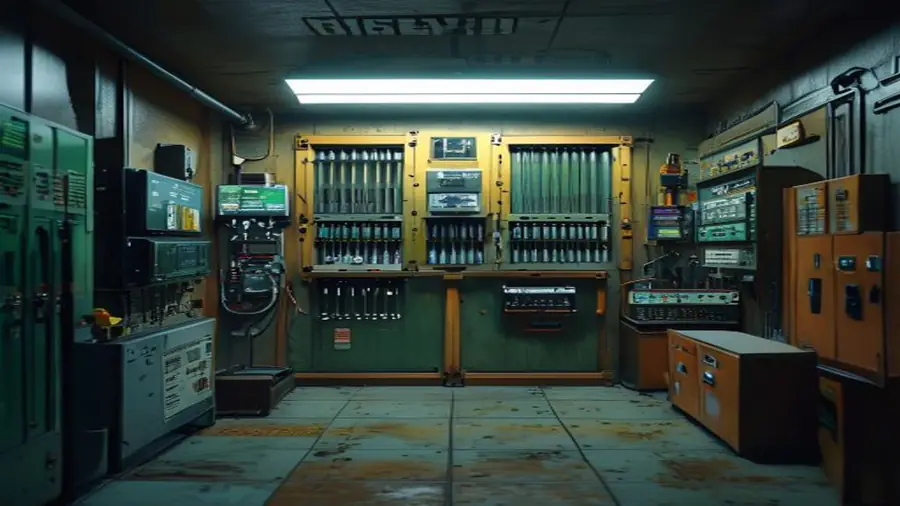

Low-voltage distribution architecture
A clear distribution hierarchy — main intake, main distribution board (MDB), sub-main distribution boards (SMDBs), and final distribution boards (DBs) — keeps fault isolation predictable and maintenance safe. Rising mains, busbar risers, and tap-off arrangements must respect structural shaft sizes and fire-stopping details agreed with the architect and fire engineer.
Circuit protection coordination ensures that a fault on a final circuit clears at the nearest protective device without blacking out entire floors. Selectivity between upstream and downstream breakers is analysed, not assumed from catalogue tables alone. Cadreatech details LV switchboard and MDB layouts with form of separation, busbar ratings, and spare ways for tenant fit-out growth.
Cable routing studies address voltage drop, grouping factors, and installation method — tray, conduit, or buried — per BS 7671 appendices. In coastal counties, corrosion-resistant supports and manufacturer guidance on humid environments are specified to reduce premature failure.
Earthing, bonding, and electrical safety
Protective earthing and supplementary bonding are non-negotiable life-safety measures. The main earthing terminal, earth electrodes, and equipotential bonding to metallic services must be designed and tested to BS 7671 requirements. Installations that treat earthing as a site improvisation — driven rods added after failing tests — delay occupation certificates and expose owners to liability.
Residual current protection is applied where required for socket outlets, outdoor equipment, and locations with increased shock risk. Arc fault and surge protection may be specified for critical IT rooms and life-safety panels following client risk assessment. All such measures are recorded on schematics and test sheets that form part of the handover dossier.
Periodic inspection intervals and condition reporting should be planned at design stage for institutional owners who must maintain audit-ready electrical safety records across campuses and hospital estates.
Standby power, solar PV, and hybrid strategies
Grid reliability planning drives standby diesel generators, uninterruptible power supplies, and increasingly solar PV with battery storage. Each technology imposes plant-room, acoustic, exhaust, and fuel-storage constraints that must be coordinated with architecture, structure, and NEMA licensing where applicable.
EPRA frameworks for embedded generation and net metering require application pathways, interconnection protection, and metering that designers must reflect on single-line diagrams before procurement. Hybrid schemes — grid, generator, and solar — need clear operational modes: open transition, closed transition, and load shedding priorities documented in cause-and-effect matrices.
Cadreatech sizes standby and renewable systems against the same essential load schedule used for MDB design, avoiding the common failure mode where generators are purchased against connected load while fire pumps and lifts cannot start together on backup.
- Essential vs non-essential load segregation with ATS logic
- Generator fuel storage, ventilation, and acoustic enclosures
- Solar PV array layout, inverter selection, and grid-tie protection
- Battery storage cycling strategy and replacement access
- Interlocks with fire alarm and lift recall systems
Lighting, ELV, and building technology interfaces
Lighting design sets circuit loads, control zoning, and emergency lighting battery provisions that feed directly into DB sizing. Interior lux levels reference BS EN 12464 principles for task and circulation areas; emergency escape lighting follows BS 5266 design and test requirements. Exterior façade, car park, and security lighting integrate with CCTV fields of view and site circulation safety.
ELV systems — structured data cabling, CCTV, access control, intercom, and audio-visual — share containment routes with power cabling. Separation, screening, and fire-stopping must respect manufacturer bend radii and PoE power budgets. ICT room power and cooling loads are included in the electrical demand schedule, not added as a late variation.
Where clients require building management system integration, electrical design defines monitoring points on switchboards, energy meters, and critical alarms so BMS dashboards reflect real equipment status after commissioning.
Documentation, verification, and handover
Design deliverables extend beyond layout drawings. Cadreatech issues schematic diagrams, panel schedules, cable schedules, load schedules, earthing layouts, and equipment specifications traceable to KEBS-adopted or IEC-rated products. Contractor shop drawings are reviewed against issued design intent before bulk procurement.
Verification and testing — continuity, insulation resistance, earth fault loop impedance, RCD operation, and functional tests for emergency systems — are planned with witness points for client representatives and authority inspection. As-built drawings and test certificates are compiled for maintenance teams and future retrofit works.
Training handover sessions for facilities staff cover normal operation, isolation procedures, generator changeover, and alarm response so operational safety continues after contractor demobilisation.
- Load schedules copied from template projects
- Switchboard rooms too small for form of separation
- Generator sized on connected load ignoring motor starts
- Earthing details missing from contract drawings
- ELV and power risers congested without coordination
- Load analysis tied to HVAC, lifts, and fire equipment schedules
- Plant rooms sized and located at sketch design
- Standby and solar studies using one essential load basis
- Earthing and bonding on issued schematics
- Riser coordination workshops with all MEP disciplines
Coordination with architecture, structure, and fire engineering
Electrical engineering cannot succeed in isolation. Ceiling void depth drives tray routes and luminaire selections. Structural cores define riser capacity. Fire compartments dictate smoke control fan power and firefighter lift interfaces. Cadreatech attends coordination sessions with architects and structural engineers so penetrations, recess depths, and access panels are agreed before reinforced concrete is poured.
Firefighting systems design sets requirements for fire pump motors, jockey pumps, pressurisation fans, and alarm panels that appear on electrical schematics with proven essential supplies. Lift consultants provide machine-room and drive data that must match dedicated feeder and backup supply design.
Developers benefit from one MEP engineering pathway through the mechanical, electrical, and plumbing hub rather than fragmented specialist appointments that leave interfaces unresolved until site.
Sector notes for Kenyan developments
Hospitals require segregated supplies for critical care, surgical areas, and medical IT with clear maintenance bypass arrangements. Hotels balance guest experience loads — kitchens, laundries, pools — with conference ICT peaks. Schools and universities need laboratory power, workshop machinery, and sports-facility floodlighting on schedules that reflect term-time diversity. Industrial warehouses introduce three-phase process loads and future expansion feeders that should not force MDB replacement within five years of occupation.
Residential estates with shared amenities — lifts, borehole pumps, security lighting — need landlord supply design that matches strata title management plans. Retail podiums with tenant fit-out must leave adequate spare ways and riser capacity without oversizing grid intake to the point of uneconomic Kenya Power tariffs.
Issue design packages in stages aligned to structural pours and fit-out tenders: intake and risers early, floor plates at shell completion, tenant fit-out schedules at lease-up. Staged issuance reduces abortive shop drawing work.
Contact Cadreatech for electrical engineering design
Whether you are developing a mixed-use tower in Nairobi, a coastal resort, or an institutional campus, Cadreatech scopes electrical engineering from load analysis through to inspection support. Share your building type, floor count, and critical loads — we respond with a distribution strategy, standby and renewable options, and a deliverable list aligned to Kenya Power and county submission requirements.
- Step 1 — Brief & data capture Collect occupancy, equipment lists, Kenya Power correspondence, and architectural layouts.
- Step 2 — Load analysis Prepare demand schedules with diversity, motor starting, and essential load categories.
- Step 3 — Schematic design Develop single-line diagrams, earthing strategy, and plant-room requirements.
- Step 4 — Detailed design Issue DB schedules, cable sizing, layouts, and equipment specifications.
- Step 5 — Coordination Workshop MEP, structural, and fire interfaces; freeze riser and penetration details.
- Step 6 — Tender support Answer contractor queries; review shop drawings against design intent.
- Step 7 — Site & handover Witness tests, compile as-builts, and train facilities staff.
